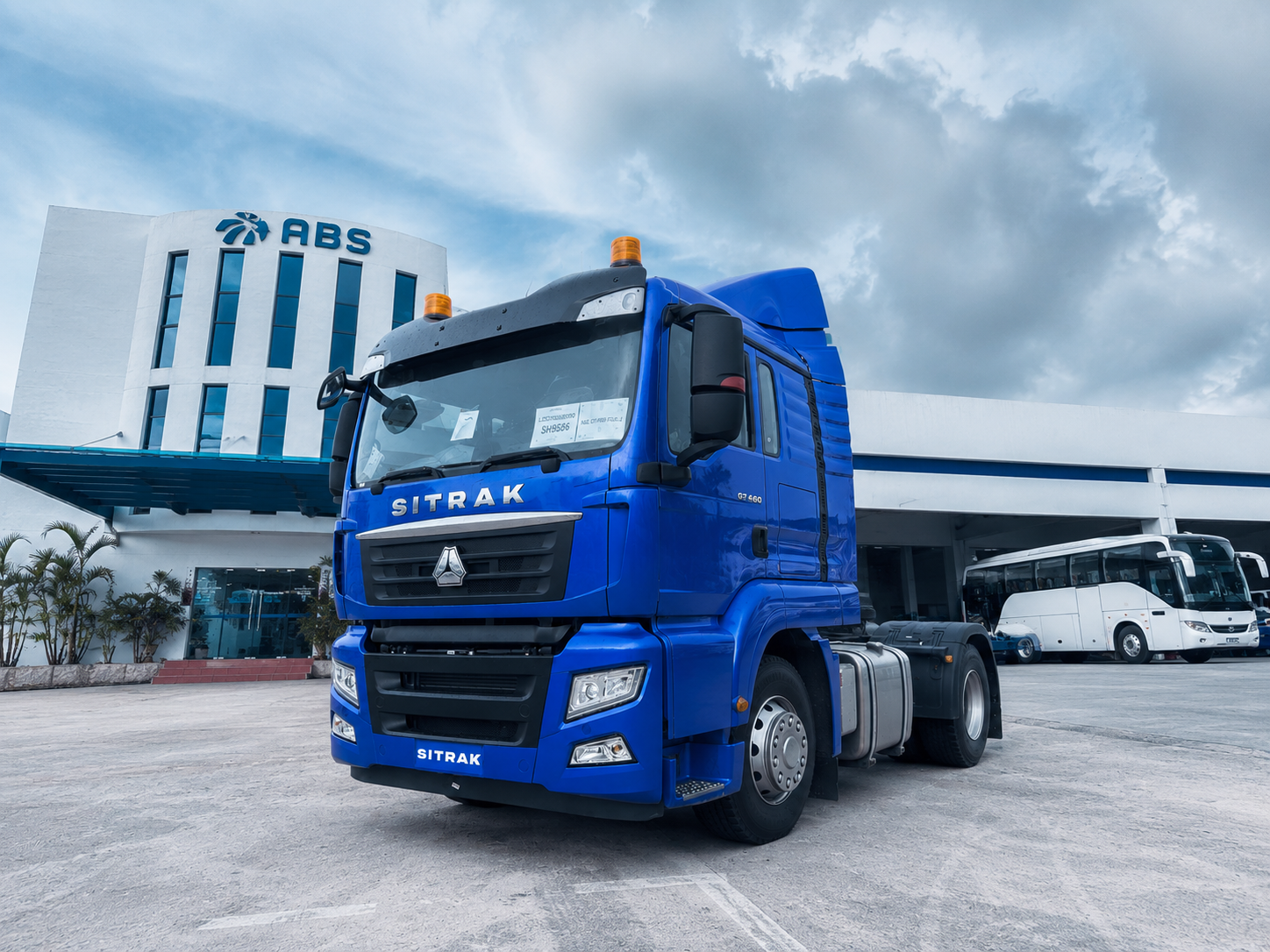

SINOTRUCK Sitrak Trackteur

Free Test Drive

Category:

Sinotruk-80 Tons Overview

SINOTRUCK Sitrak Trackteur Specifications

Dimensions

  • Dimensions (mm): 5400(L)*2490(W)*3230(H)
  • Wheelbase (mm): 3200
  • Front Overhang (mm): 1475
  • Rear Overhang (mm): 895
  • Fuel Tank (L): 370
  • Front Suspension: LEAF SPRING, 3-LEAF
  • Rear Suspension: LEAF SPRING, 5-LEAF
  • Tyres (Front&Rear): 295/80R22.5
  • Transmission: AMT
  • Emission Standard: EURO 6
  • Battery (V/Ah): 2 X 12/180
  • Alternator (V): 24

Weight

  • Unladen (kg): 7000
  • Gross Combination (kg): 60000
  • Front Axle Capacity (kg): 7100
  • Rear Axle Capacity (kg): 13000

Engine

  • Model: MC 11
  • Displacement (cc): 10518
  • Max. Rated Power (kW/rpm): 338/1900
  • Max. Torque (Nm/rpm): 2200/1000-1400
  • Speed Limit (km/h): 60
  • Bore X Stroke (mm): 120 X 155
