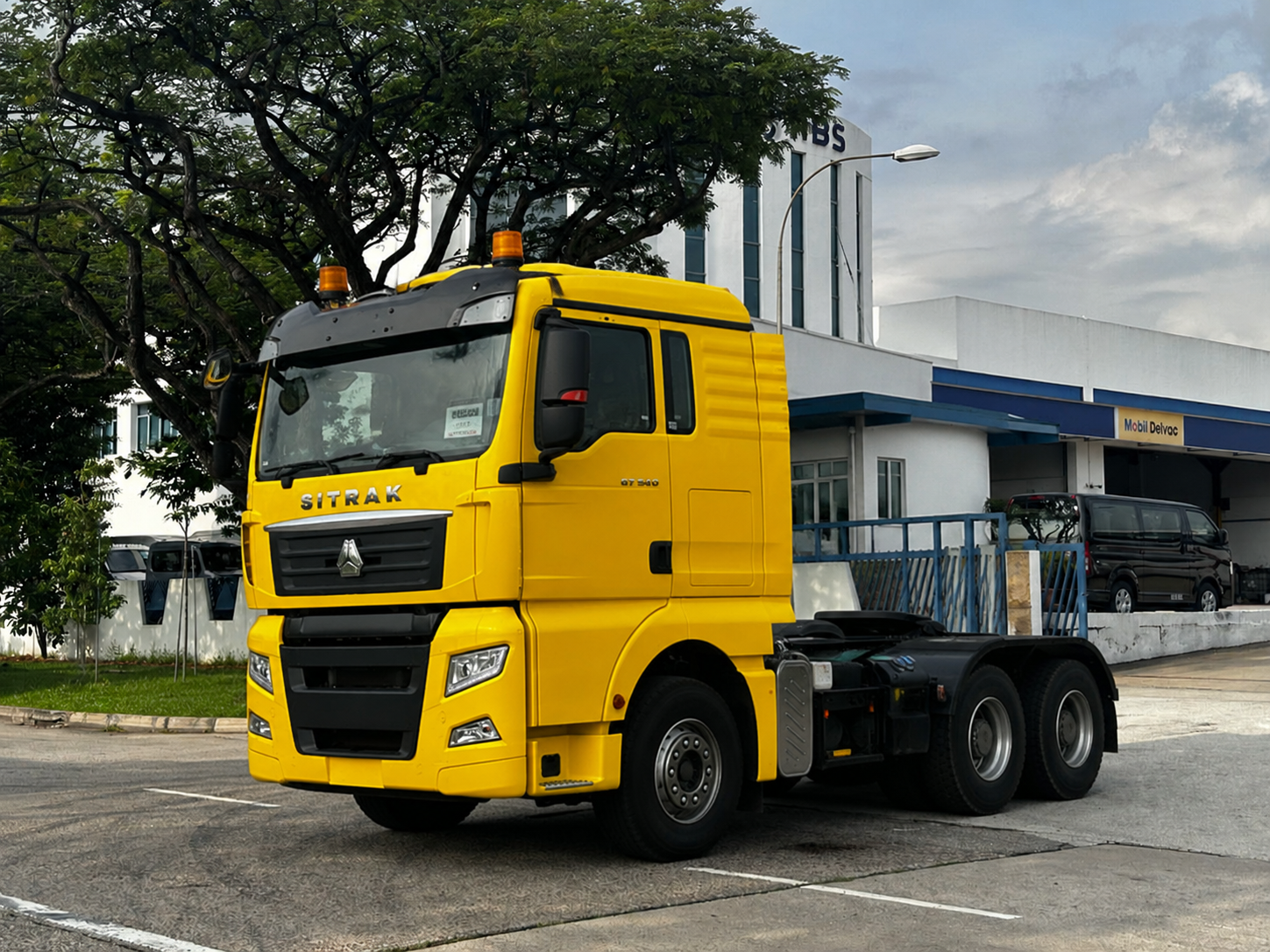

Sitrak 6×4 Tracktor

Category:

Sinotruk 6×4 Tracktor Specifications

Dimensions

  • Dimensions (mm): 6775(L)*2500(W)*3520(H)
  • Wheelbase (mm): 3225 + 1350
  • Front Overhang (mm): 1475
  • Rear Overhang (mm): 725
  • Fuel Tank (L): 370
  • Front Suspension: LEAF SPRING, 9-LEAF
  • Rear Suspension: LEAF SPRING, 12-LEAF
  • Tyres: FRONT 385/65R22.5,
    REAR 315/80R22.5
  • Transmission: AMT
  • Emission Standard: EURO 6
  • Battery (V/Ah): 2 X 12/180
  • Alternator (V): 24

Weight

  • Unladen (kg): 9000
  • Gross Combination (kg): 150000
  • Front Axle Capacity (kg): 9500
  • Rear Axle Capacity (kg): 26000

Engine

  • Model: MC 13
  • Displacement (cc): 12419
  • Max. Rated Power (kW/rpm): 397/1800
  • Max. Torque (Nm/rpm): 2500/1000-1400
  • Speed Limit (km/h): 60
  • Bore X Stroke (mm): 126 X 166
